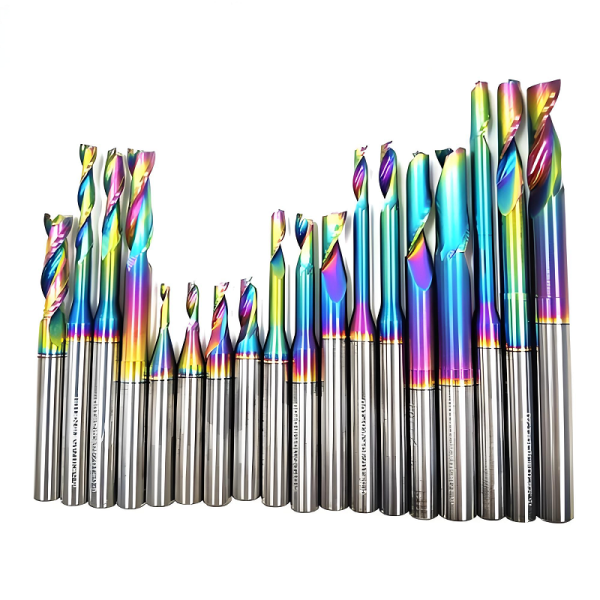

Coated 2 Flutes Taper Ball Nose DLC HRC55 Solid Carbide End Mills for aluminum Carving Tooling Cutter Used
Detail Information
| Product Name: | 60 Degree DLC End Mill | Model: | HRC60 DLC taper Carbide End Mills |
|---|---|---|---|
| Material: | HRC60 Tungsten Steel Milling Cutter | Workpiece: | brass, aluminum, acrylic; |
| Usage: | Milling | Coating: | DLC coated |
| HRC: | HRC60 | Feature: | High gloss /Few BUE/Long Life |
| Application: | CNC Machining | Package: | 1pcs/Box |
| Highlight: |
60 Degree DLC taper End Mill,DLC coated taper End Mill for aluminum ,High finish aluminum end mill,Long Life and BUE free end mill; |
||
Product Description
Coated 2 Flutes Taper Ball Nose DLC HRC55 Solid Carbide End Mills for aluminum Carving Tooling Cutter Used
Features:
- Specific tools for aluminum / brass use ;
- Free of BUE;
- Imported high-quality raw materials from Japan;
- High precision at 0.001mm and hardness;
- High quality coating material from Germany;
- Sharp and wear-resistant;
- High processing efficiency;
- Stable performance;
- Good impact resistance;
- 1.Specific tools, to be used for the processing of copper, aluminum,Acrylic,Plastic,MDF, Pipe,Windows and Doors ;
- 2.Bring good surface roughness after processing;
- 3.With highly heat-resistant DLC coating or other quality coating, can be used for high-speed and high finish processing;
- 4.High toughness, using grain-sized carbon tungsten as the raw material;
- 5.Help to increase the smoothness, reduce the friction coefficient,and improve the milling efficiency, thus save more production time;
Important Notes:
-
- To be made according to your special demands;
- 100% Quality Warranty ;
- 100% Inspection under Famous equipments;
- Fast Delivery in 2-3 days;
- Over 30 years experience in precision cutting tools;
- With 30 years experience technician and R&D center in Japan;
- With Branches in Singapore / Japan / China / USA / Mexico / Brazil / UK / Philippines / Malaysia / Turkey/ Argentina;
- Product positioning: High Quality + Reasonable Price.
- Shipping By Fedex /DHL /UPS;
Note:
- If the following carbide end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 1F, 2F, 3F, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide end mill according to your needs.
| Taper end mills Specification ( Flute Dia x CL x Shank Dia x Overall Length) | |
| R0.5*30°*6D*45L | |
| R0.75*30°*6D*45L | |
| R1.0*30°*6D*45L | |
| R1.5*30°*6D*45L | |
| R2.0*30°*6D*45L | |
| R0.5*20°*6D*45L | |
| R0.75*20°*6D*45L | |
| R1.0*20°*6D*45L | |
| R1.5*20°*6D*45L | |
| R2.0*20°*6D*45L | |
| R0.5*15°*6D*45L | |
| R1.0*15°*6D*45L | |
| R1.5*15°*6D*45L | |
| R2.0*15°*6D*45L | |
| R0.25*30°*6D*50L | |
| R0.25*20°*6D*50L | |
| R0.25*10°*6D*75L | |
| R0.25*15°*6D*50L | |
| R0.5*12°*6D*70L | |
| R0.5*30°*6D*70L | |
| R0.5*10°*6D*60L | |
| R0.75*10°*6D*60L | |
| R1.0*8°*6D*60L |
Instructions:
1. Before using the carbide end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
2. The shorter the carbide extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
3. In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
4. Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
5. Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications:
Copper and aluminum, brass ,Acrylic,Plastic,MDF, Pipe,Windows and Doors, and so on. General-purpose operation of milling, engraving,rolling, profiling.
