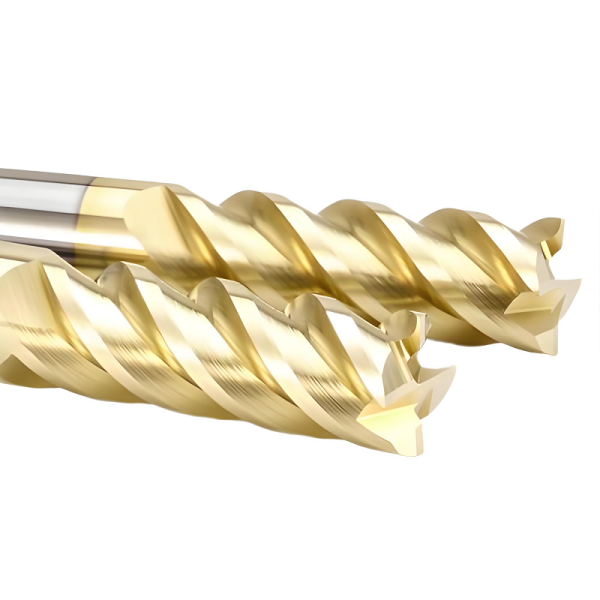

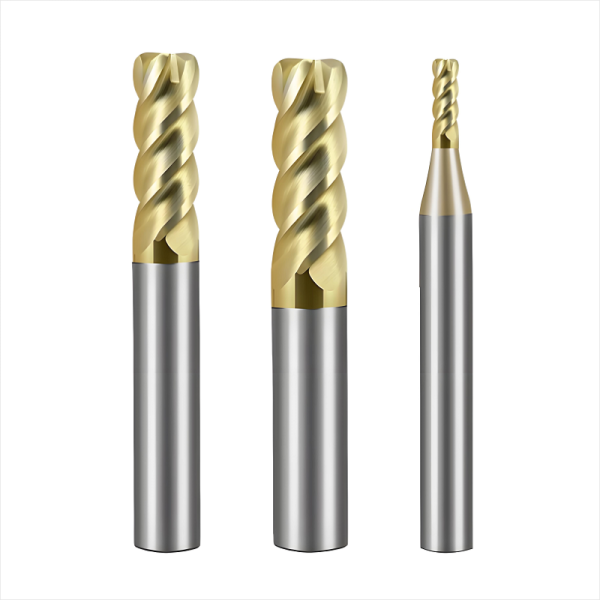

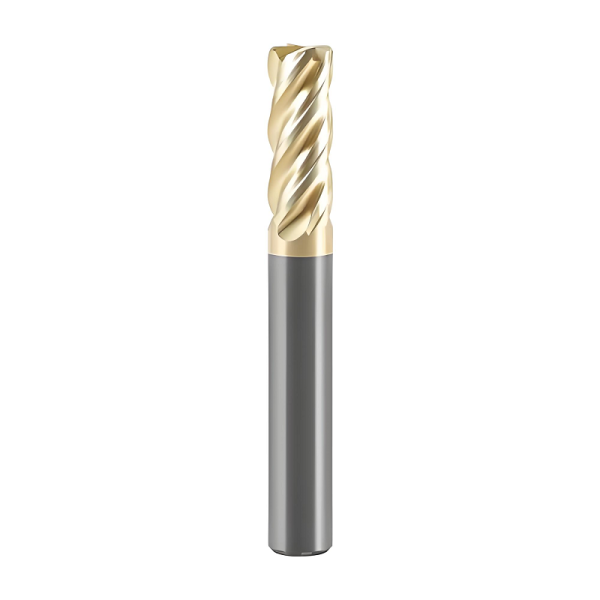

High performance unequal flutes varialble helix Titanium alloy Hrc65 Hrc70 square 3/8 1/2 4 Flute Carbide Flat End Mill 1/2″ 1/4 Inch endmill
Detail Information

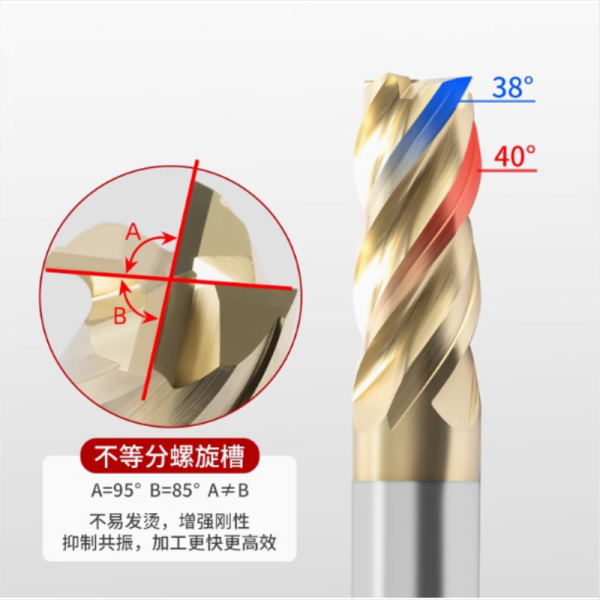

| Product Name: | 4F carbide End Mill | Model: | HRC65/68 Variable helix and pitch End Mills |
|---|---|---|---|
| Material: | HRC65/68 Tungsten Steel carbide Japan | Workpiece: | Titanium alloy,Nickel-based alloy,superalloy |
| Usage: | Milling | Coating: | AlTiN /Nano coating |
| HRC: | HRC65/68 | Feature: | High Wear-resistance /Few BUE/Long Life |
| Application: | CNC Machining | Package: | 1pcs/Box |
| Highlight: |
4 Flutes variable helix and pitch End Mill,Unequal variable spiral End Mill for Titanium alloy,Nickel-based alloy,superalloy,Durable Titanium alloy end mill,Long Life and BUE free end mill; |
||
Product Description
In Stock High performance unequal flutes varialble helix Titanium alloy Hrc65 Hrc70 square 3/8 1/2 4 Flute Carbide Flat End Mill 1/2″ 1/4 Inch endmill
Features:
- Specific tools for Titanium alloy,Nickel-based alloy,high-temperature alloy,Ni-base superalloy use only ;
- Free of BUE;
- Imported high-quality raw materials from Japan;
- High precision at 0.001mm and hardness;
- High quality coating material from Germany;
- Durable and Highly wear-resistant;
- High processing efficiency;
- Stable performance;
- Good impact resistance;
- 1.Specific tools, to be used for the processing of Stainless Steel, Titanium alloy,Nickel-based alloy,high-temperature alloy,Ni-base superalloy ;
- 2.Bring good surface roughness after processing;
- 3.With highly heat-resistant AlTiN coating or other quality coating, can be used for high-speed and high finish processing;
- 4.High toughness, using grain-sized carbon tungsten as the raw material;
- 5.Help to increase the smoothness, reduce the friction coefficient,and improve the milling efficiency, thus save more production time;
Important Notes:
-
- To be made according to your special demands;
- 100% Quality Warranty ;
- 100% Inspection under Famous equipments;
- Fast Delivery in 2-3 days;
- Over 30 years experience in precision cutting tools;
- With 30 years experience technician and R&D center in Japan;
- With Branches in Singapore / Japan / China / USA / Mexico / Brazil / UK / Philippines / Malaysia / Turkey/ Argentina;
- Product positioning: High Quality + Reasonable Price.
- Shipping By Fedex /DHL /UPS;
Note:
- If the following carbide end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 1F, 2F, 3F, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide end mill according to your needs.
| 4 flutes Square end mills Specification ( Flute Dia x CL x Shank Dia x Overall Length) Variable Pitch & Helix angle series | |
| D1*3*D4*50L*4F | D10*25*D10*75L*4F |
| D1.5*4.5*D4*50L*4F | D10*40*D10*100L*4F |
| D2*6*D4*50L*4F | D12*30*D12*75L*4F |
| D2.5*7.5*D4*50L-4F | D12*45*D12*100L*4F |
| D3*9*D4*50L*4F | D14*45*D14*100L*4F |
| D4*10*D4*50L*4F | D16*45*D16*100L*4F |
| D4*16*D4*75L*4F | D18*45*D18*100L*4F |
| D4*20*D4*100L*4F | D20*45*D20*100L*4F |
| D6*15*D6*50L*4F | D6*45*D6*150L*4F |
| D6*24*D6*75L*4F | D8*50*D8*150L*4F |
| D6*30*D6*100L*4F | D10*60*D10*150L*4F |
| D8*20*D8*60L*4F | D12*60*D12*150L*4F |
| D8*30*D8*75L*4F | D14*75*D14*150L*4F |
| D8*35*D8*100L*4F | D16*75*D16*150L*4F |
| D18*75*D18*150L*4F | |
| D20*75*D20*150L*4F | |
Instructions:
1. Before using the carbide end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
2. The shorter the carbide extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
3. In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
4. Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
5. Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications:
Stainless steel,Titanium alloy,Nickel-based alloy,high-temperature alloy,Ni-base superalloy, and so on. General-purpose operation of milling, rolling, profiling.
