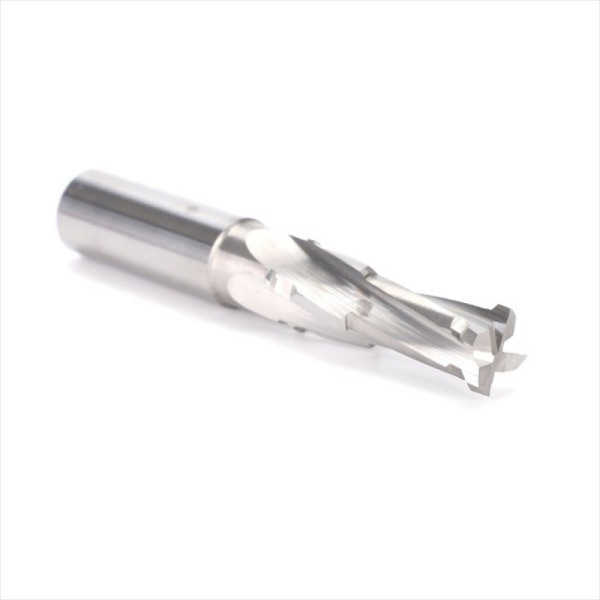

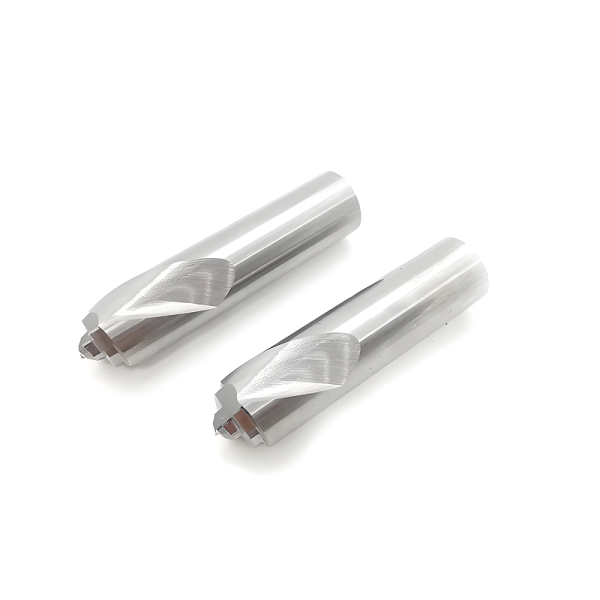

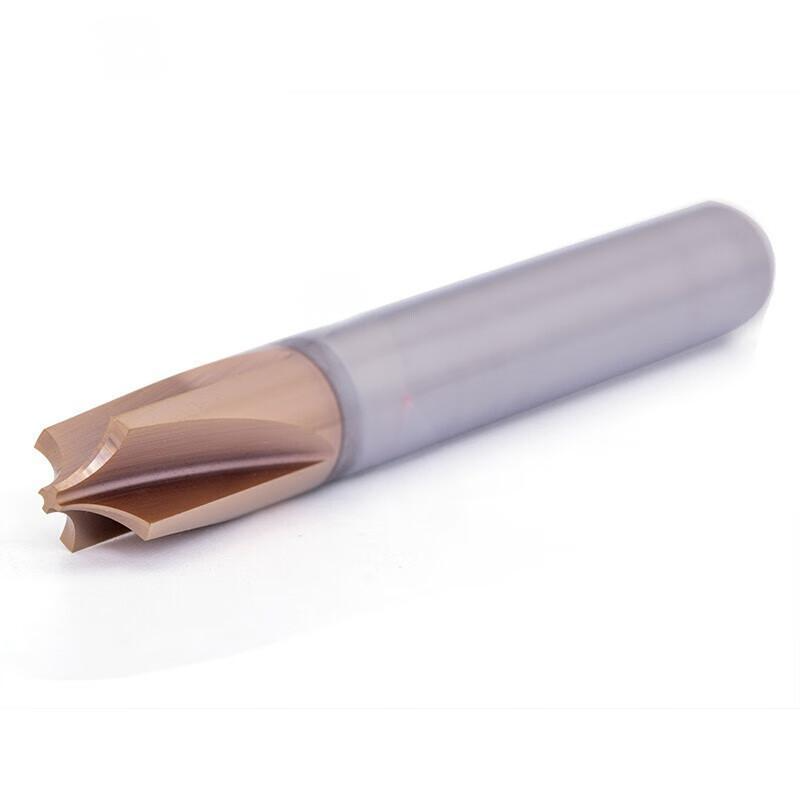

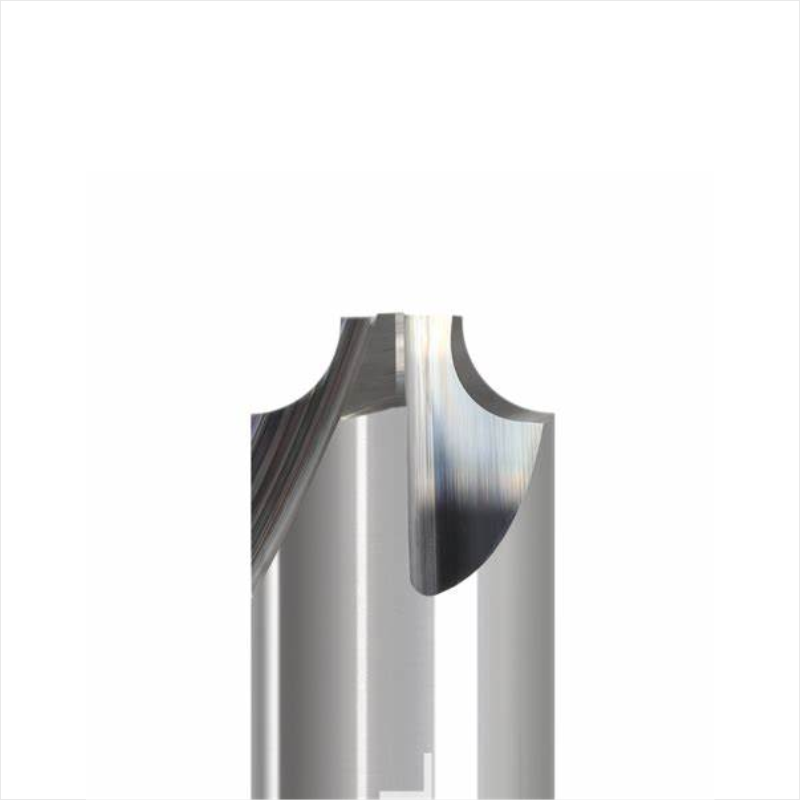

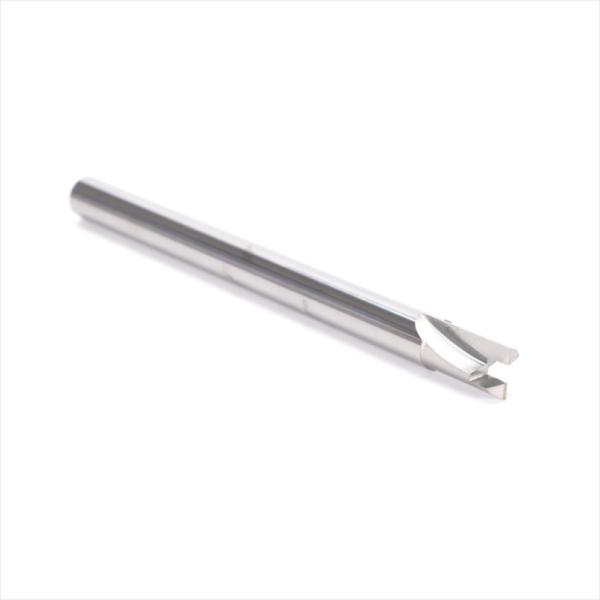

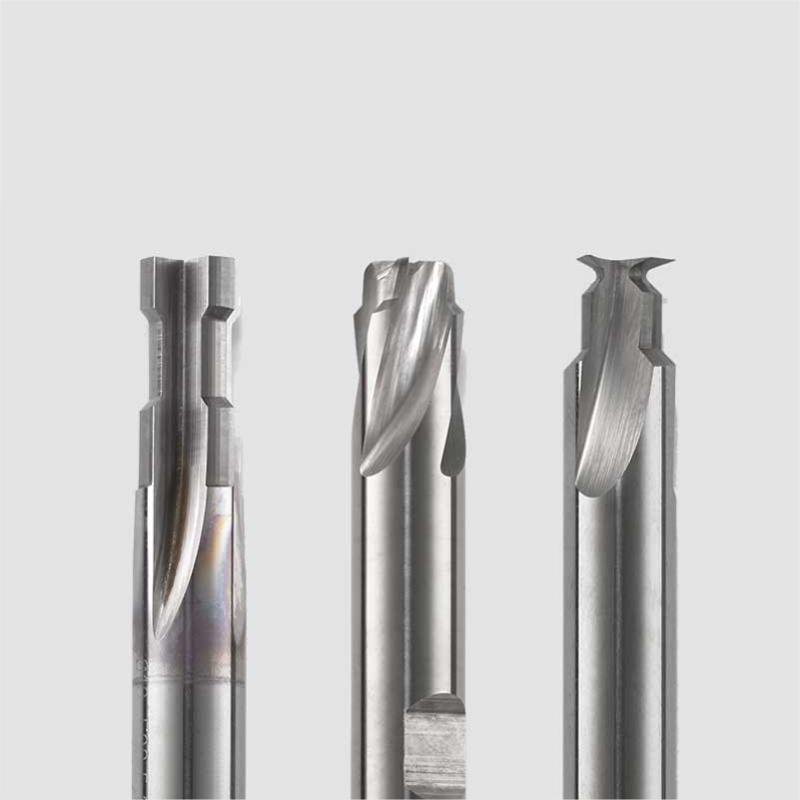

High precision Customized Cnc Router Bits profiling End Mill Carbide forming Tools
Detail Information
| Product Name: | Custom forming tool | Model: | Solid Carbide step milling /forming drills |
|---|---|---|---|
| Material: | Tungsten Steel profiling mills | Workpiece: | steel /aluminum |
| Usage: | milling / drilling / forming | Coating: | coated / uncoated |
| HRC: | HRC55/60/65 | Feature: | High Finish / High precision 0.001 |
| Application: | CNC Machining | Delivery: | 5-7 days |
| Highlight: |
Solid Carbide special forming tool,Customized profiling tool ,High quality special cutter |
||
Product Description
High precision Customized Cnc Router Bits profiling End Mill Carbide forming Tools
Features:
- Imported high-quality raw materials from Japan;
- High precision at 0.001mm and hardness;
- High quality coating material from Germany;
- Sharp and wear-resistant;
- High processing efficiency;
- Stable performance;
- Good impact resistance;
- 1.Can be used for the processing of copper, cast iron, carbon steel, mould steel, stainless steel, taitanium alloy, tool steel, and heat-treated steel;
- 2.Bring good surface roughness after processing;
- 3.With highly heat-resistant ALTIN coating or other quality coating, can be used for high-speed and high finish processing;
- 4.High toughness, using grain-sized carbon tungsten as the raw material;
- 5.Help to increase the smoothness, reduce the friction coefficient,and improve the lathe efficiency, thus save more production time;
Important Notes:
- To be made according to your special demands;
- 100% Quality Warranty ;
- 100% Inspection under Famous equipments;
- Fast Delivery in 5-7 days;
- Over 30 years experience in precision cutting tools;
- With 30 years experience technician and R&D center in Japan;
- With Branches in Singapore / Japan / China / USA / Mexico / Brazil / UK / Philippines / Malaysia / Turkey;
- Product positioning: High Quality + Reasonable Price.
- Shipping By Fedex /DHL /UPS;
1. Before using the carbide tools, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
2. The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
3. In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
4. Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide tools.
5. Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and so on. General-purpose operation milling, drilling,slotting, rilling, profiling.
