High Quality Solid CBN end mill diamond milling cutter
Detail Information
| Product Name: | Custom PCBN Tool | Model: | PCBN End Mill |
|---|---|---|---|
| Material: | AAA PCBN from GE/USA | Workpiece: | steel /carbide / Nickel-alloy / cast iron |
| Usage: | forming /drilling /reaming | Coating: | uncoated |
| HRC: | HRC92 | Feature: | High gloss Finish/ long life / High precision 0.001 |
| Application: | CNC Machining | Delivery: | 7-10 days |
| Highlight: |
High quality PCBN Tool,Diamond CBN End Mill,High precision PCBN milling cutter. |
||
Product Description

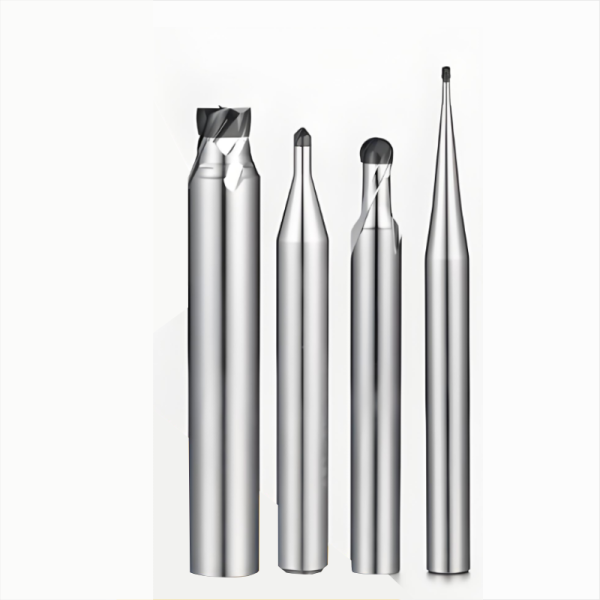

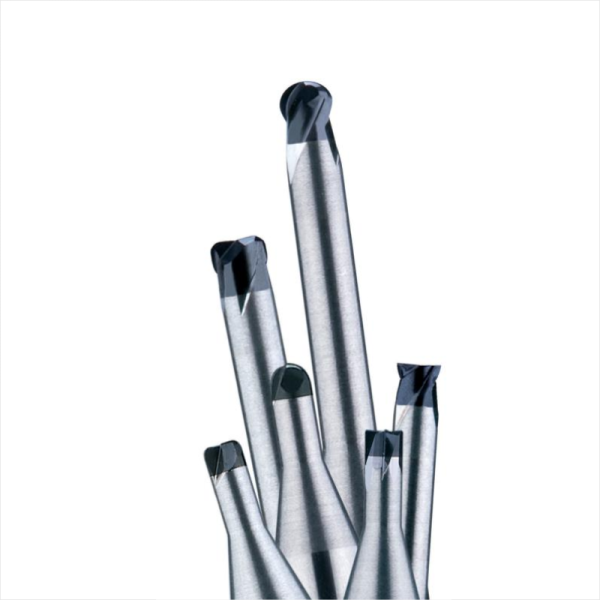

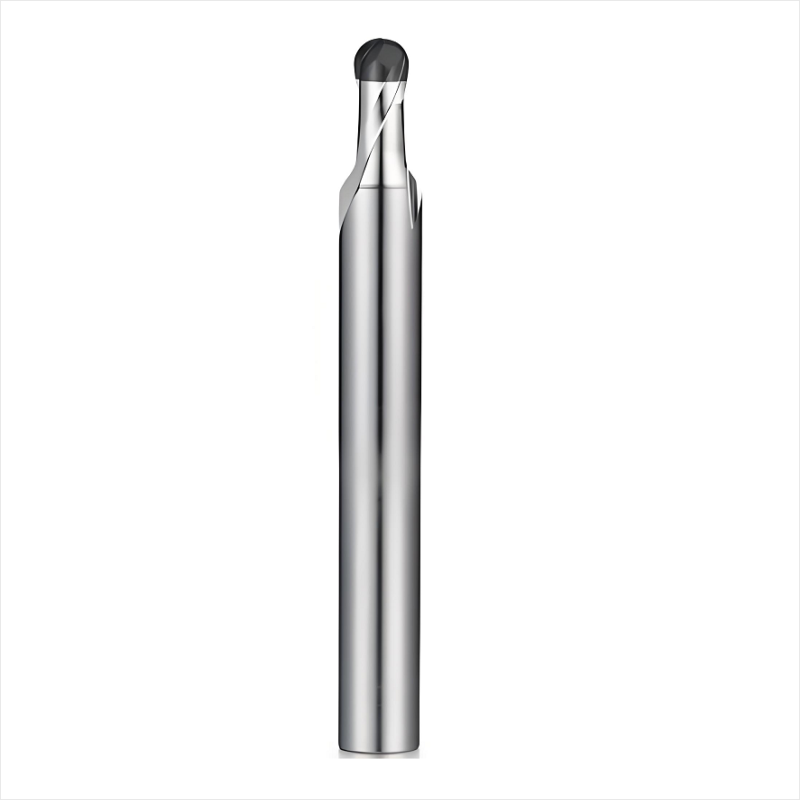

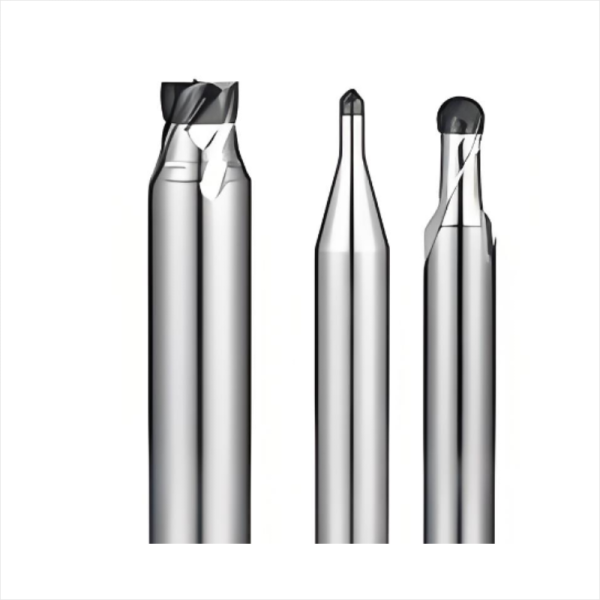

High Quality Solid CBN end mill diamond milling cutter
Features:
- Imported high-quality raw materials from Japan/USA(GE);
- High precision at 0.001mm and high hardness;
- High quality cutting finish;
- Sharp and wear-resistant;
- High processing efficiency;
- Stable performance;
- Good impact resistance;
- 1.Can be used for the processing of carbon steel, harden steel, carbide, Titanium alloy, CuW , Cast iron, Nickel-based alloy;
- 2.Bring good surface roughness after processing;
- 3.With highly heat-resistant, wear-resistance, can be used for high-speed and high finish processing;
- 4.High toughness, using grain-sized carbon tungsten as the raw material;
- 5.Help to increase the smoothness, reduce the friction coefficient,and improve the lathe efficiency, thus save more production time;
Important Notes:
- To be made according to your special demands;
- 100% Quality Warranty ;
- 100% Inspection under Famous equipments;
- Fast Delivery in 7-10 days;
- Over 30 years experience in precision cutting tools;
- With 30 years experience technician and R&D center in Japan;
- With Branches in Singapore / Japan / China / USA / Mexico / Brazil / UK / Philippines / Malaysia / Turkey;
- Product positioning: High Quality + Reasonable Price.
- Shipping By Fedex /DHL /UPS;
1. Before using the PCBN tools, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
2. The shorter the carbide extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
3. In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
4. Spray type and air jet type are preferred for workpiece cooling, which can improve the use effect of PCBN tools.
5. Note: Not suitable for low speed machines such as rotary table and electric hand tool.
Applications:
Carbon steel, Harden steel, Carbide, Titanium alloy, CuW , Cast iron, Nickel-based alloy; and so on. General-purpose operation milling, slotting, rolling,profiling.
