High Quality Tungsten Carbide Endmill AlTiN Coating 6mm End Mill
Detail Information
| Product Name: | Square End Mill | Model: | 2 /4 Flutes Flat End Mill |
|---|---|---|---|
| Material: | Tungsten Carbide Flat Endmill | Number Of Flutes: | 2/4 Flutes |
| Shank Diameter: | D1mm~D20mm | Flute Length: | 50mm~200mm |
| HRC: | HRC55/60/65 | Coating: | TiAIN/AlTiN/AlTiSiN/Blue Nano |
| Workpiece: | Cast Iron/Steel/Stainless Steel/Aluminum | Feature: | Good Wear Resistance |
| Usage: | Milling | Package: | 1pcs/Box |
| Highlight: |
High Feed Tungsten Steel Milling Cutter,CNC Flat End Mill,6mm Flat End Mill |
||
Product Description

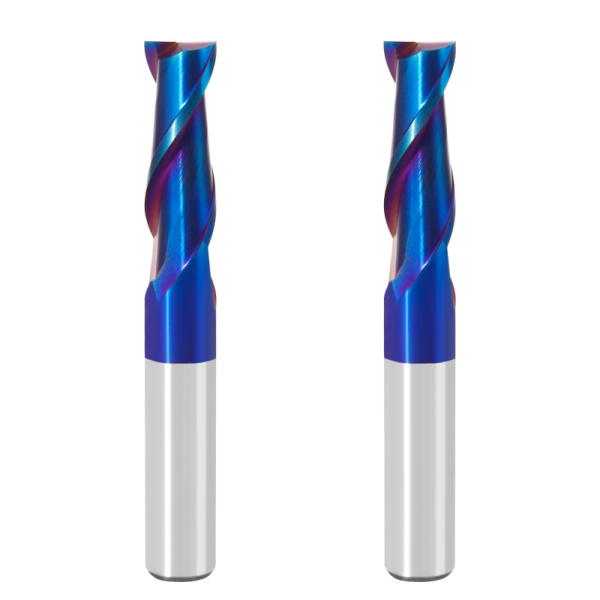

Cnc Carbide End Mill 2F Flat Endmill HRC55/60/65 Milling Cutter CVD Coated 1.5mm 6mm 8mm Quick Detail:
- Suitable for cutting carbon steel, alloy steel and steel parts with HRC below 55/60/65 °;
- Through characteristic design, the cutting process is lighter, the tool rigidity is better, and the service life is longer;
- It can realize rough machining with high metal removal amount and finish machining with high surface quality;
- The product can be as small as 0.1mm, even the smallest part of the part can be easily processed;
- The coating type for steel parts below HRC55/60/65 ° shall be adopted.
Description:
1. Good heat resistance, its heat resistance temperature can reach 1100 ℃, and the maximum processing hardness can reach 52HRC. After processing, the shape accuracy and surface roughness of the processed workpiece are good; Therefore, the carbide end mill can avoid the phenomena of accretion, chipping, wear, tool breakage, etc. during the processing and production process, extend its service life, and effectively improve the product quality of the processed workpiece.
2. The number of commonly used edges is 2F, 3F, 4F, 5F, 6F, etc. The more the number of edges, the better the effect after finishing.
3. The outline of the end milling cutter is shown in the figure. The outer edge and bottom surface of the carbide end mill are provided with milling teeth to form a cutting edge, which is used to mill the vertical and horizontal surfaces of the workpiece.
4. In general, the carbide end milling cutter is very suitable for 2D shaped workpieces.
Note:
- If the following carbide end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide end mill according to your needs.
| 2 flutes Square end mills Specification ( Flute Dia x CL x Shank Dia x Overall Length) |
| 1.0*3.0*D4*50L |
| 1.5*4.5*D4*50L |
| 2.0*6.0*D4*50L |
| 2.5*7.5*D4*50L |
| 3.0*9.0*D3*50L |
| 3.0*9.0*D4*50L |
| 3.5*10*D4*50L |
| 4.0*12*D4*50L |
| 5.0*15*D5*50L |
| 5.0*15*D6*50L |
| 6.0*18*D6*50L |
| 8.0*24*D8*60L |
| 3.0*10*D3*75L |
| 4.0*16*D4*75L |
| 5.0*20*D5*75L |
| 6.0*20*D6*75L |
| 8.0*30*D8*75L |
| 10*30*D10*75L |
| 12*35*D12*75L |
| 4.0*20*D4*100L |
| 6.0*30*D6*100L |
| 8.0*35*D8*100L |
| 10*40*D10*100L |
| 12*45*D12*100L |
| 14*45*D14*100L |
| 16*45*D16*100L |
| 18*45*D18*100L |
| 20*45*D20*100L |
| 6.0*D6*150L |
| 8.0*D8*150L |
| 10*D10*150L |
| 12*D12*150L |
| 14*D14*150L |
| 16*D16*150L |
| 18*D18*150L |
| 20*D20*150L |
Instructions:
1. Before using the carbide end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
2. The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
3. In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
4. Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
5. Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications: Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and so on. General-purpose operation slotting, rilling, profiling.
